　　2730190 Other Names:

　　Remote Field Controller 2730190

　　2730190 Ethernet Controller

　　Expansion Module 2730190

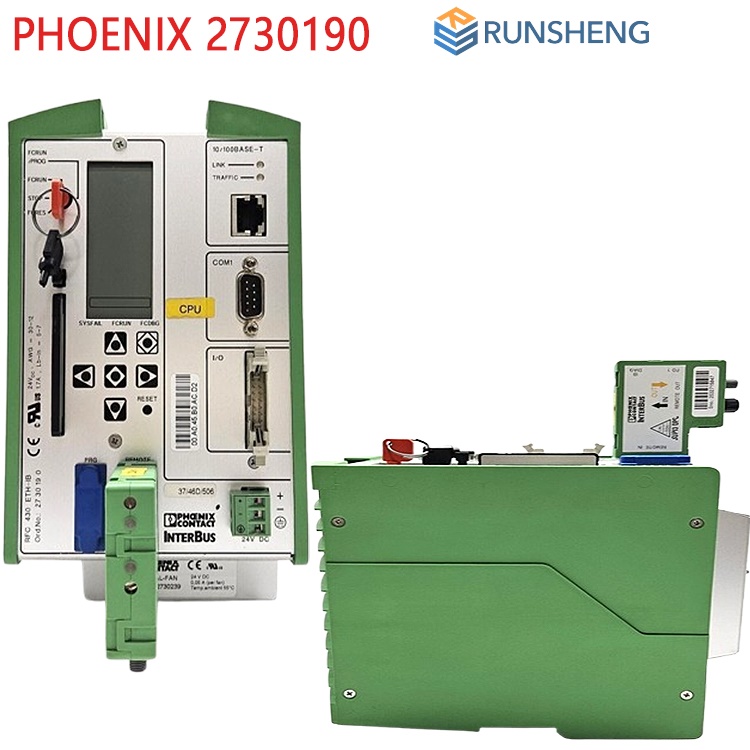

　　The Phoenix 2730190 ETH-IB Controller is a high-performance remote fieldbus controller from Phoenix Contact, designed specifically for industrial automation scenarios.

　　Core Functions and Architecture

　　Network and Bus Support:

　　Integrates a 1×10/100 Mbps Ethernet interface, supporting data exchange via TCP/IP protocol for distributed modular control; supports time synchronization.

　　As an INTERBUS master station, it supports a maximum of 8192 bits of process data and can connect up to 512 devices (including 254 remote bus devices/bus segments), supporting 62 devices with parameter channels.

　　Equipped with an RS-232 serial port and a D-SUB-9 connector for parameterization, operation, and diagnostics.

　　Processing and Storage:

　　Compliant with IEC 61131-3 standards, programmed using PC Worx automation software, supporting multiple languages including ladder diagrams and structured text.

　　Typical program memory: 2MB (stores approximately 170K instructions), data memory: 4MB, reserved data memory: 96KB (NVRAM), integrated real-time clock (with battery backup).

　　Input/Output:

　　5 digital inputs (inline potentiometers, 2/3/4-wire connection), 3 digital outputs (pull-back spring connection, 2/3/4-wire connection), maximum output current per channel: 500mA.

　　Input: 5-channel digital input (connected via row potentiometer, supports 2/3/4-wire).

　　Output: 3-channel digital output (connected via spring terminals, supports 2/3/4-wire, maximum output current per channel 500mA).

　　Power Supply: 24V DC, voltage range 19.2V~30V (including ripple), typical power consumption 1.5A, maximum power consumption 20W (excluding fan module).

　　Environmental Adaptability:

　　Operating Temperature: 0°C~55°C (fan module required above 45°C), storage temperature -25°C~70°C.

　　Humidity: 5%~90% (non-condensing), shock/vibration resistance conforms to IEC 60068-2-27/2-6 standards.

　　Mechanical Dimensions: 124mm × 210mm × 190mm (including fan module), weight approximately 1.56kg (excluding packaging), IP20 protection rating.

　　Control Functions: Supports 16 control tasks, integrated real-time clock (battery backup), 96KB non-volatile memory (NVRAM), programming using PC WORX tool (compliant with IEC 61131-3 standard).

　　Power Supply and Protection:

　　24V DC power supply, voltage range 19.2V to 30V (including ripple), typical power consumption 1.5A, maximum 20W.

　　IP20 protection rating, operating temperature 0°C to 55°C (above 45°C with fan module), humidity 5% to 90% (non-condensing), shock/vibration resistant design compliant with IEC 60068-2-27/6 standard.

　　Mechanical and Expandability:

　　Dimensions: 124×185×190mm (without fan), 124×210×190mm with fan module; weight approximately 1.55kg (without fan) to 1.7kg (with fan).

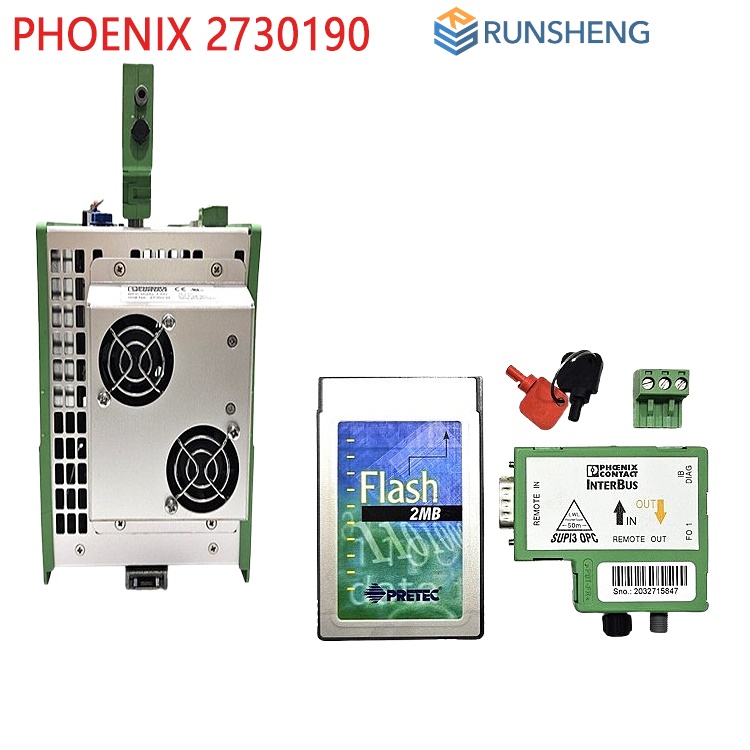

　　Supports pluggable parametric memory (MC FLASH) for easy configuration migration and maintenance.

　　Configuration and Support

　　Engineering Tools: Programming is performed using PC WORX software (supports IEC 61131-3 language), along with the DIAG+ diagnostic tool.

　　Documentation and Support: User manuals and technical documents are available through the Phoenix Contact website or authorized distributors (such as Farnell and PLC Direct). Global sales support is provided (free shipping, 1-year warranty).

　　Compliance: Complies with China RoHS and other environmental standards, and is EMC certified (Class A).

　　Application Scenarios and Advantages

　　Industrial Automation: Suitable for scenarios requiring distributed control, remote monitoring, and high reliability, such as electronics/battery production, electrical engineering, manufacturing, and the energy industry.

　　Expansion Capabilities: Supports modular design and can be used with Phoenix Contact's Axioline I/O modules, distributed bus systems, etc., for flexible expansion.

　　Compliance and Certification: Complies with CUL, IEC standards, and REACh/China RoHS environmental requirements, ensuring global applicability and safety.

　　This controller, with its robust fieldbus support, flexible programming capabilities, high protection level, and industrial-grade reliability, is an ideal choice for intelligent manufacturing, remote monitoring, and complex automation systems in the Industry 4.0 era.
