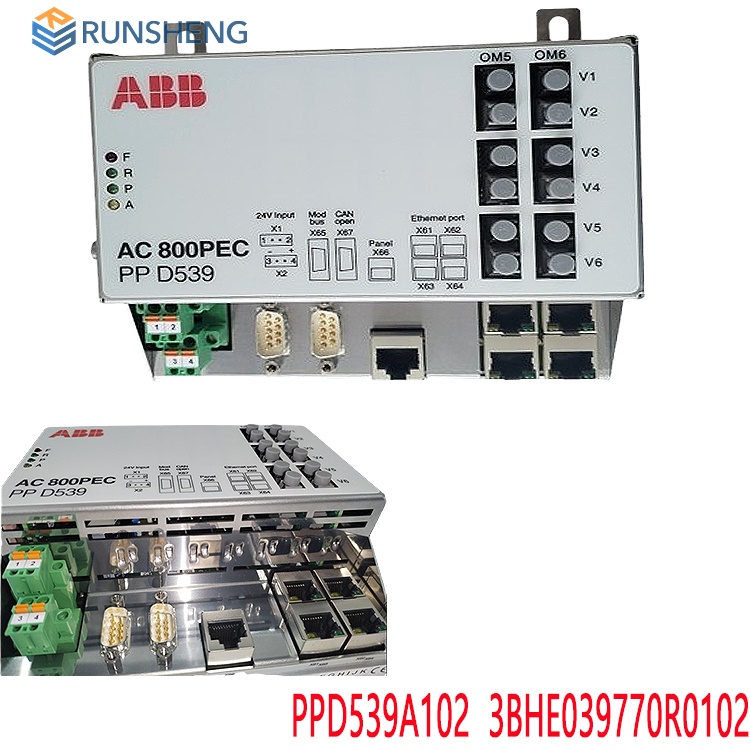

How does the ABB PPD539A102 3BHE039770R0102 AC 800PEC controller establish communication with the driver and control the device?

　　1. Hardware Connection and Interface Configuration

　　Communication Interface Selection: The AC800PEC controller supports multiple industrial protocols (such as PROFIBUS, Ethernet/IP, Modbus TCP, CAN, DDCS, etc.). The appropriate physical connection method must be selected based on the interface type of the drive device (such as ABB ACS800 frequency converter, servo drive, etc.):

　　PROFIBUS-DP: Connects via a 9-pin Sub-D connector or fiber optic link, supporting baud rates from 9.6kbps to 12Mbps. Master/slave addresses and bus parameters must be configured.

　　Ethernet: Connects to the factory control network using dual Ethernet ports, supporting protocols such as MMS, OPC UA, and Modbus TCP, compatible with ABB 800xA systems or SCADA platforms.

　　AnyIO Expansion: Expands fieldbus modules (such as Profinet, DeviceNet) via the onboard AnyBus-S slot or CEX interface, adapting to third-party devices.

　　Power Supply and Grounding: A redundant DC 9-36V power supply is used, equipped with reverse connection protection and surge protection modules to ensure electromagnetic interference resistance in industrial environments.

　　2. Communication Protocol Configuration and Parameter Settings

　　Protocol Adaptation:

　　PROFIBUS-DP: I/O configuration is created in the controller using the SST ProfiBus configuration tool, setting the master station number, slave station address, baud rate, and I/O address mapping (e.g., configuring PZD3-PZD6 input/output areas for the PROFIBUS-DP protocol).

　　Ethernet Protocol: MMS or OPC UA communication parameters are configured in Control Builder M, defining the data model and server endpoint to achieve real-time data interaction with the host computer or drive device.

　　Drive-Specific Protocols: For example, the ABB DDCS protocol used for drive control requires enabling the corresponding communication module (e.g., the RPBA-01 adapter) on the drive device side and configuring the communication rate and data format.

　　Parameter Optimization:

　　Set cycle times (e.g., 10ms low-speed I/O cycle, 25µs high-speed analog cycle) to match the response requirements of the driven devices.

　　Configure redundant channels (e.g., dual power supply, dual communication links) to improve system reliability. Monitor the communication status of master and slave devices via the SYS LED status.

　　3. Software Programming and Control Logic Implementation

　　Programming Tools: Use ABB Control Builder M or Compact Control Builder for ladder diagram (LD), function block diagram (FBD), or structured text (ST) programming, integrating algorithms such as PID and feedforward control.

　　Control Logic Design:

　　Basic Control: Map the start, stop, speed setpoint (e.g., REF signal), and status feedback (e.g., actual values of ACT1-ACT4) of the driven devices through digital/analog I/O mapping.

　　Advanced Functions: Implement multi-axis synchronous control, load surge detection, and fault self-diagnosis (e.g., overcurrent and overvoltage protection). Record event sequences using COMTRADE waveform recording.

　　Debugging and Verification:

　　Use the PECView service tool or SCADA system to remotely monitor the communication link status, and locate faults through LED indicators and event logs.

　　Perform no-load tests to verify the correctness of the control logic, and gradually load to full load to verify system stability and response speed.

　　4. Typical Application Scenarios

　　Inverter Control: In a PROFIBUS-DP network, configure the ACS800 inverter as a slave station, and achieve speed/frequency adjustment through control words (CW) and setpoints (REF), while status words (SW) and actual values (ACT) provide feedback on the operating status.

　　Servo System Control: Communicate with the servo drive via the EtherNet/IP protocol to achieve closed-loop control of position, speed, and torque, combined with mechanical unit activation signals (such as Motor On) to trigger motion sequences.

　　Multi-device Collaboration: Integrate the S800 I/O module and fiber optic PowerLink into the AC800PEC platform to build a distributed control system, enabling precise control in scenarios such as high-speed rolling mills and wind power generation.

　　Key Considerations

　　Compatibility Verification: Ensure the drive device supports the selected communication protocol and hardware interface to avoid communication failures caused by protocol incompatibility.

　　Redundancy Design: Employ dual power supplies, dual communication links, and a hot-standby CPU module to ensure continuous system operation.

　　Safety Compliance: Comply with industrial safety standards (such as IEC 61850), configure emergency stop, fault reset, and access control functions to prevent unauthorized operation.

　　Through the above steps, efficient communication and precise control between the ABB AC800PEC controller and drive devices can be achieved, meeting the complex automation needs of industries such as power, metallurgy, and petrochemicals.
